Stainless Steel Two Sides Bottle Adhesive Labeling Machine 220V 50HZ

Name: Stainless Steel Two Sides Bottle Adhesive Labeling Machine 220V 50HZ
Brand: Labelong
Price: 5000 USD

Wholesale Stainless Steel Two Sides Bottle Adhesive Labeling Machine 220V 50HZ from china suppliers

Brand Name : Labelong

Model Number : AL-100DF

Certification : CE

Place of Origin : China

MOQ : One set

Price : 5000-10000

Payment Terms : T/T OR L/C

Supply Ability : 50-100set per year

Delivery Time : 20-40 days

Packaging Details : Wooden case

Voltage : 220v single phase

Automatic grade : Automatic

Type : two heads labeling machine

Application : Food,Medical,Beverage,Chemical field

Material : stainless steel

Driven type : Electric

Packaging type : Bottles,Case

Condition : New

After-sales service provided : Engineers available to service machinery overseas

Warranty : 1 Year

Contact Now

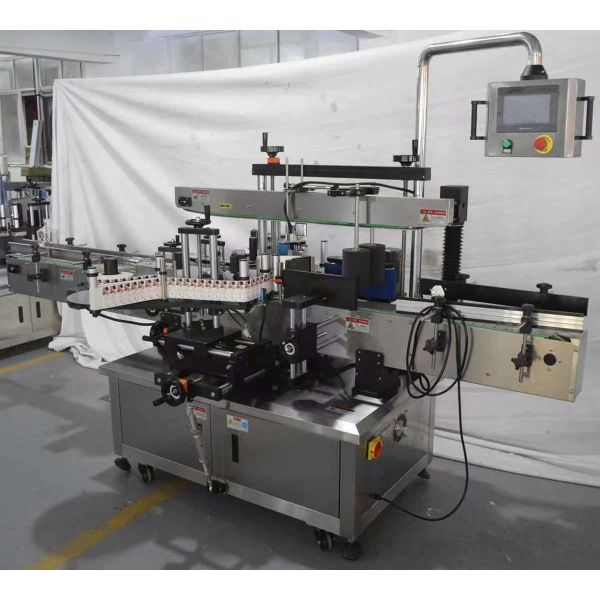

Automatic Stainless Steel Front And Back Two Sides Bottle Adheisve Labeling Machine

Main Feature

1. This machine is applied to flat bottle ,shampoo bottle, oil bottle ,Beverages etc.
2. PLC control, full-automatic workingTouch-screen control panel, easy operate l The inaccurate labeling is eliminated because of the structure of three rollers capable of locating labeling position. Any labeling post can be realized, AB symmetric labeling, with the fixed point and position labeling (need to increase position electric eye and product positioning)
3.The machine can be assemble positioning electric eyes and pressure inflatable, greatly improving the precision of thin and transparent bottle label
4. The machine can customize production line, Stand-alone operation can add automatic feeding mechanism.
5. Sensor control, no label, machine stop
6. 304 stainless steel machine main body, aluminum frame.

7. All the botle with double sides can use this machine !

Specification of machine

Model	AL-100DF
Labeling Speed	30-70pcs/m
Suitable to product Diameter	φ8mm~30mm
Suitable to product height	25-80mm
Suitable label size	20-100mm(width)
Labeling accuracy	± 1mm
Label inner diameter	76mm
Label outer diameter	280mm
Machine Dimension	2200(L)* 1580(W) * 1600(H) mm
Net Weight	Around 300kgs
Power Supply	220V 50HZ can be adjustable
Power	1.5kw
Conveyor length	2m

The full-automatic double-sided corner labeling machine equipment is suitable for single-sided or double-sided corner labeling of various flat, elliptical, circular, square bottles and other products in food, daily chemical, pharmaceutical and light industry. Optional printer or inkjet printer to the labeling head, which can print the production date, batch number, inkjet bar code and other information on the label; It can be equipped with inkjet printer to the conveyor belt, which can spray print the production date, batch number, bar code and other information on the product before and after labeling.

Main Configuration list (depends on customer’s requirement)

1	Part name	QTY	Main material
	Labeling head	1set	AL-alloy,stainless steel,acrylic, Sponge,PU roller
	Adjusting mechanism	1set	AL-alloy,stainless steel Brass, Nylon
	Touch screen	1 set	AL-alloy,stainless steel
2	Electronics	QTY	Spec. or brand
	Label sensor	1 set	Sick
	Objective sensor		Panasonic
	PLC	1set	Panasonic/Mitsuibishi
	Touch screen	1 set	Siemens
	Cylinder	1 set	Airtac
	Main motor	1 set	XINGFENG CHINA

Stainless Steel Two Sides Bottle Adhesive Labeling Machine 220V 50HZ

Our machine list

No.	Production line category	Capacity
1	Hot filling production line	3,000-36,000BPH
2	Beverage processing System	1,000 Ltrs/H to 10,000 Ltrs/H
3	Bottled water production line	3,000-36,000BPH
4	5L Large capacity bottled water production line	700-5,000b/h
5	Carbonated drink production line	3,000-18,000b/h
6	Pulp juice production line	5,000-22,000BPH
7	Oil Filling line	3,000-10,000BPH
8	Linear Filling machine	300-900BPH
9	Bottlle Unscrambler	Up to 20,000BPH
10	Barrelled water production line	300-2000 bucket/H
11	Water Treatment system	1,000 Ltrs/H to 10,000 Ltrs/H
12	OPP Labeling machine	6,000-24,000BPH
13	PVC Shrink Sleeve Labeling machine	6,000-24,000bph
14	Automatic Blow molding machine	1,000-7,000BPH
15	Full-automatic Film Wrapper & Shrinker	5-20packs
